Steel Wire Technology
Your Leading Steel Wire Technology Supplier
Zhangjiagang City Vicrown New Material Co., Ltd. specializes in the production, research and development and sales of metal products. After long-term efforts and development, it has now become a leading manufacturer and exporter of metal products. Our steel wire technology includes cold drawn steel wire, patented steel wire, black annealed tie steel wire, oil tempered steel wire, phosphate coated steel wire, etc. We maintain long-term friendly cooperative relationships with customers and enjoy a high reputation in both domestic and international markets.
Why Choose Us
Rich Experience
The company began producing and selling steel wire ropes and bead wires in the early 1990s. We have over 30 years of experience in the research and production of metal products.
Production Market
Our company has over 20 years of export experience, and our products are mainly sold to markets such as North America, South America, Europe, Australia, and Southeast Asia.
Production Equipment
Our company has phosphating steel wire production lines, coppered steel wire production lines, and galvanized steel wire production lines.
Product Application
Our company's products are widely used in the fields of automobiles, construction, energy, agriculture, consumer goods, and mechanical equipment.
Types of Steel Wire Technology
Oil Tempered Steel Wire
In the field of metal wire processing, oil tempered steel wire stand out with their unique process and superior performance. Our oil tempered steel wire are meticulously crafted using advanced oil hardening techniques, which involve heating the wire to high temperatures followed by rapid oil cooling.

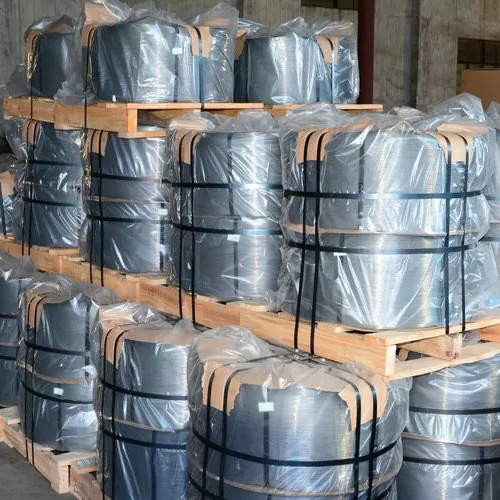

Cold Drawn Steel Wire
Cold drawing, as a core technology in the field of metal material processing, endows steel wires with excellent comprehensive properties through precise drawing under cold conditions. cold drawn steel wire produced by this process not only excel in durability, strength, and flexibility but also achieve a mirror-like surface quality.
Black Annealed Tie Steel Wire
As a flexible model in the field of metal wires, our annealed steel wire is made from low-carbon steel, integrating core processes such as cold drawing and high-temperature annealing. By precisely controlling the ratios of iron, carbon, zinc, and trace elements, we create high-quality soft wires that combine flexibility with mechanical stability.
Specifications of Steel Wire Technology
|
Material quality |
High carbon steel, C:>0.5% |
|
Diameter |
0.5-1.70mm |
|
Standard |
ASTM A229, ASTM A401, EN10270-2, JIS G 3560-1994, B/T18983, etc |
|
Standard grades |
55SiCr, 54SiCr6, SAE9254, SAE9254V,60Si2MnA, 50CrVA, 65Mn, etc |
Customization Options
| Diameter | Customizable |
| Structure | Customizable |
| Length | Customizable |
| Twist direction | Left/right |
| Packaging | I-shaped wheel roll or fixed length straight bar |
Steel Wire Technology: Bend Test Methods
3-point bend tests are simpler to set up than 4-point and the bend fixtures are also more affordable. The 3-point test can provide accurate flexural strength and modulus measurements when the materials are homogeneous and ductile.
4-point bend tests apply when your test samples are brittle, heterogeneous, or if surface flaws are a concern - including ceramics, and some composites. 4-point tests create a zone of constant bending moment between the inner upper loading points which reduces stress concentrations and the likelihood of premature failure at a single point. If your material's properties vary across its cross-section, such as layered composites or wood, the 4-point test offers a better measure of the bending behavior, as it tests a larger volume of the material.
Guided bend tests apply to testing of weld ductility where controlled bending to a specific angle is part of the evaluation.
Application Scenario: Steel Wire Technology
Steel Wire Technology: Surface Treatment Method
Plating
In general, plating is the least expensive method of adding a corrosion-resistant metallic surface to steel wire. About 60% of all carbon-steel-wire plating is done with zinc: 20% with chromium, 10% with nickel, and the balance with aluminum, tin, copper, and brass.
The plating quality on wire is higher than on any other form of steel because drawn wire has fewer surface variations that can affect the plated finish. Plating thicknesses range from 0.0001 to 0.004 in., with most in the 0.0001 to 0.0015-in. range.
Coatings
Organic and inorganic coatings—Primarily paint, lacquer, vinyl, nylon, and epoxy are used for both appearance and functional needs. Coating range in thickness from 0.004 to 0.015 in., with moist in the 0.005 to 0.01-in. range. Coatings are also usually thinner for paints and thicker for plastics.
Shipping & Payment
FAQ
We're well-known as one of the leading steel wire technology manufacturers and suppliers in China. If you're going to buy high quality steel wire technology made in China, welcome to get free sample from our factory.
High lubrication phosphate steel wire rope, Easy to pull phosphating steel wire, Oil quenched steel wire for high strength springs
